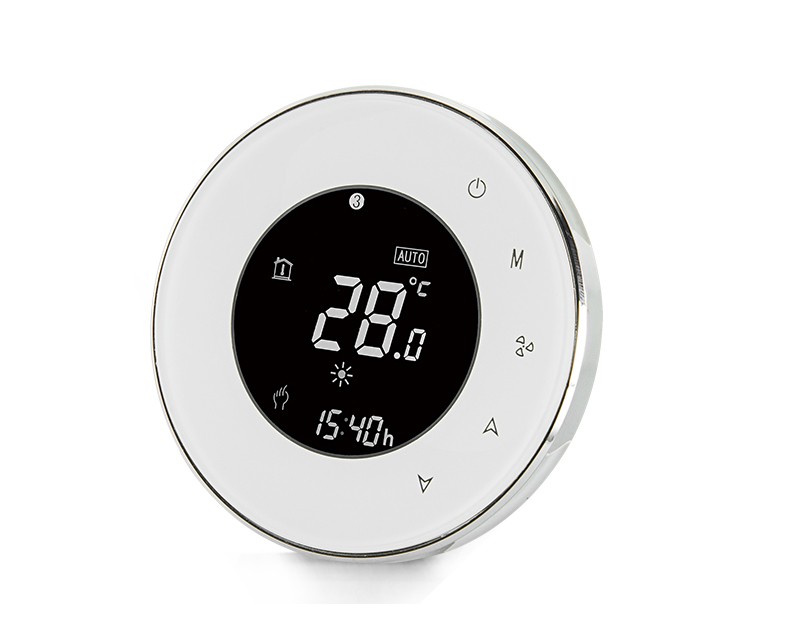

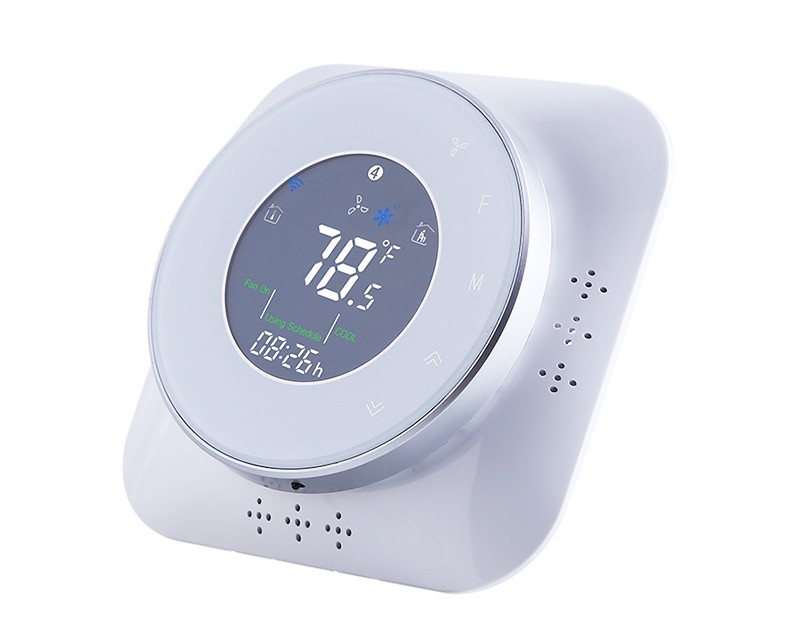

Smart Thermostat -Fan Coil unit: ZDTM-002 series Modern Round Touch Screen Room Thermostats are designed to on/off control the fans and valves in air conditioner applications via comparison of room temp. and setting temp. as reaching the aim of comfort and saving energy.

- Optional Model:

* ZDTM-001:  Economic WiFi Fan Coil unit

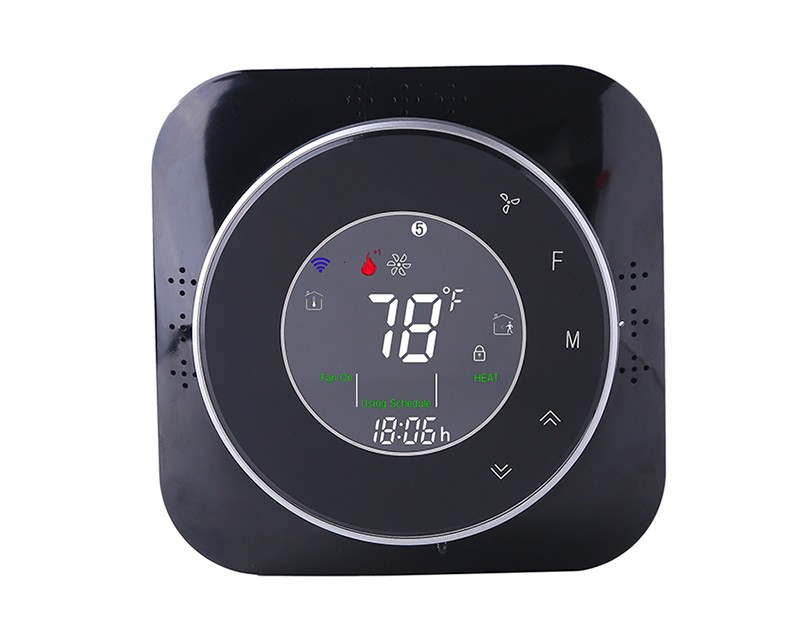

* ZDTM-002HW: WiFi Heat Pump Room Thermostat (24VAC) for USA & Canada

- Powerful functions are available such as Net/Modbus/WIFI etc.

- 0.5°C Accuracy keeps temperature within the level you set.

- °C & °F is changeable.

- Data memory when power is off.

- 5+2 six periods programmable maximize comfort and economy.

- Negative black screen will bring you to a secret world.

- 51mm round display area helps to protect your eyes.

- Glass or Acrylic Lens is for your selection.

- Touch buttons to make simple operation.

- Amazing Silver Frame opens your modern life.

-The visiable thickenss above the wall is only 11mm.

- Rotation to connect gives you easy installation.

- 86mm hidden box and european 60mm round box is suitable.

- White, black or gold housing creates your colorful life.

• Power Supply: 95~240 VAC, 50~60HZ

• Fan Relay Amps Resistance: 5A; Inductive: 3A

• Valve Relay Amps Resistance: 3A; Inductive: 1A

• Sensor: NTC3950, 10K

• Accuracy: ±0.5℃ or ±1℉;
  Set Temp. Range: 5 -35℃;
  Dispaly Temp. Range: 5 ~ 99℃

• Power Consumption: <1.5W

• Ambient Temp.: 0 ~ 45 ℃


• Ambient Humidity: 5 ~ 95 % RH (Non Condensing)
  Storage Temp.: -5 ~ 45 ℃

• Timing Error: < 1%

• Shell Material: PC +ABS ( Fireproof)

• Wire Terminals: Wire 2 x 1.5 mm2 or 1 x 2.5 mm2

• Protection Class: IP30

• Buttons: Capactive Touch Buttons

• ZDTM-002: Weight: 0.25kg/pc, packing box: 15*15*4.5cm


  ZDTM-003: Weight: 0.35kg/pc, packing box: 17*12.5*6cm

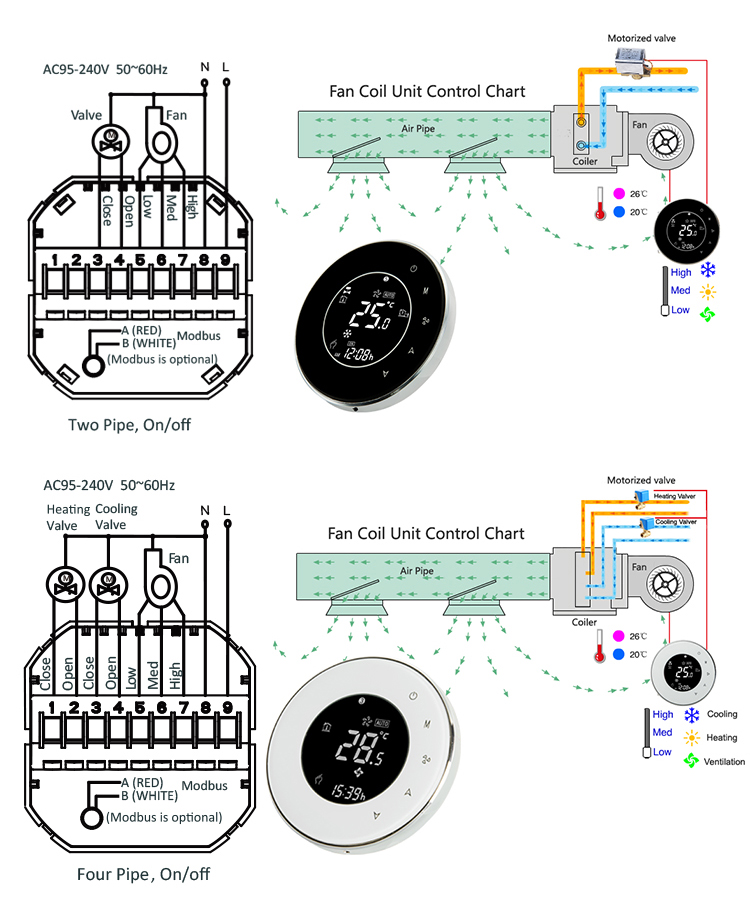

- WIRING DIAGRAM:

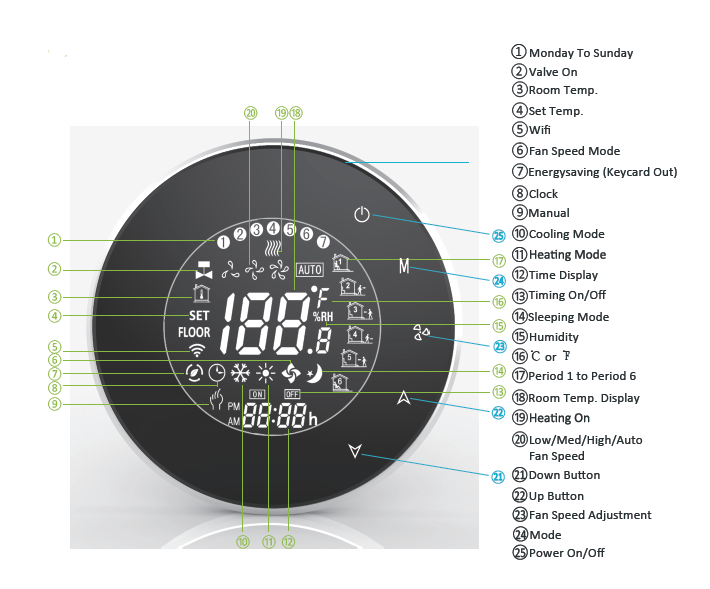

- HOME SCREEN QUICK REFERENCE:

Package Contents:

• Standard Exporting Packing Box
