Home  >  Products  >  Access Control Solutions  >  Door Release Button

Model: ZDBT-801E with Dimension: 86×86mm
Model: ZDBT-801B1K with  Dimension: 115×40mm
Model: ZDBT-801B2K with  Dimension: 115×70mm
Multi-Angle View

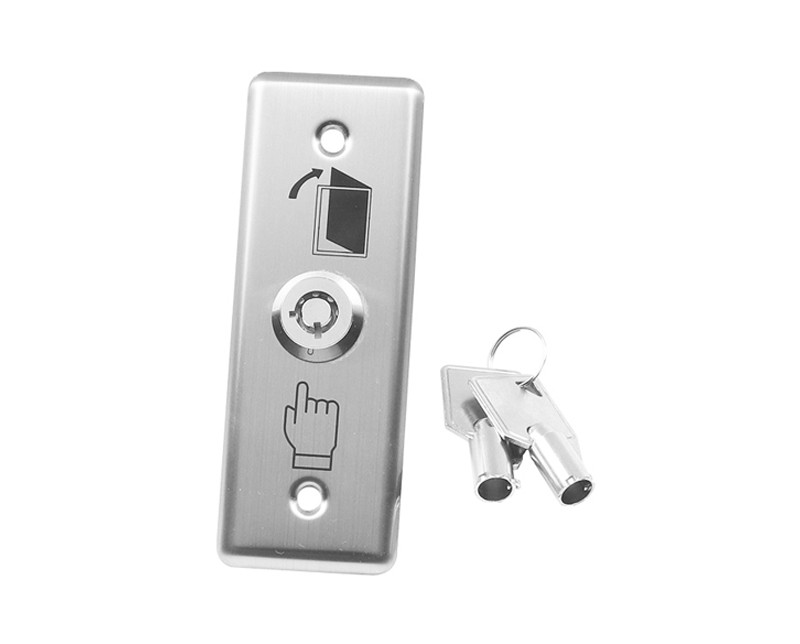

Key Door Release Button-Stainless Steel


Facebook Twitter InLink instagram Youtube Skype
  • For less demanding applications, 2 keys included

  • Stainless steel face plates with key

  • Contait Output: NC.&NO.

  • No Mechanical Fault

  • Suitable for all kinds of locks.

Key Door Release Button-Stainless Steel:  Keyswitch, Stainless steel Panel with Key, 500000 times life, Momentarily turning the key changes the state of the contacts, it's widely used for access control system.

- Optional Lock No.:

  * ZDBT-801B1K with Dimension115×40mm

  * ZDBT-801B2K with Dimension115×70mm

- Stainless steel Panel with Key,Nickel-plated copper button
- Mechanical Life: 500000 tested
- Momentarily turning the key changes the state of the contacts
- Suitable for Door: Hollow Door

  • Mechanical Life: 500000 tested

  • Current Rating: 3A 36VDC Max

  • Suitable for Door: Hollow Door

  • Operating temp: 10~+55℃(14-131F)

  • Operating Humidity: 0-95% (non- condensing)

  • Product Size: 86×86mm; Packing size: 105*90*40mm; Weight: 0.18kg

Package Contents:

  • Standard Exporting Packing Box
