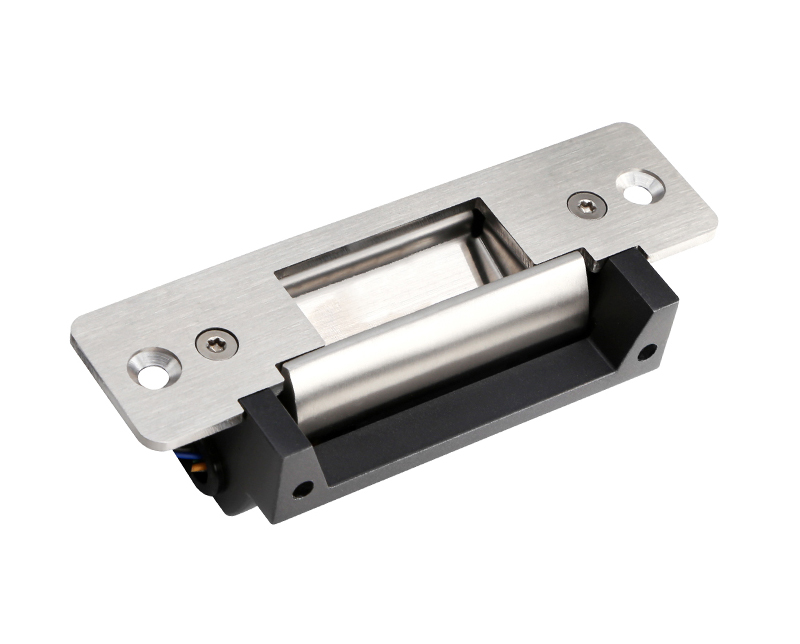

US-TYPE Heavy Duty Electric Strike:  ANSI Heavy Duty electric strike with signal output is designed for use with ANSI cylindrical locksets. It can be fitted to wooden door,metal door,PVC door ,etc. It features both “electrically controlled” operation for daily use and “manual operation" for emergencies. The operating mode fail secure or fail safe can be adjusted as needed.

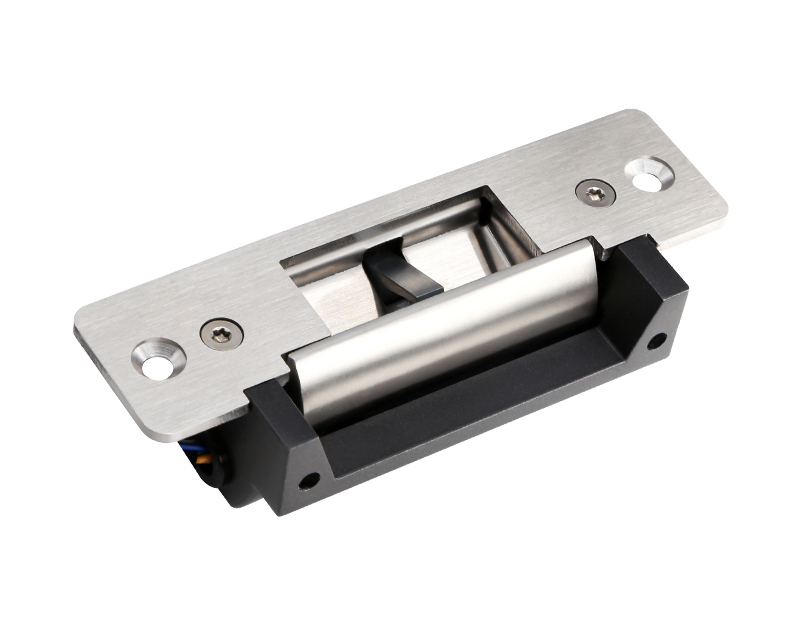

- Optional model with signal feedback:

* ZDL-135NC-S: Fail-safe type/ Power to lock）

* ZDL-135NO-S:  Fail-secure type / Power to open(Unlock)

- Holding 1100kg.

- Special design,easy to adjust the distance of the Lock-tongue.

- Designed for Metal Frame drill a hole, then install it directly.

- Testing to 1 million cycles.

- High-Temperature Painted, Durable and Beautiful Artical.

• Keeper: stainless steel precision casting


• Holding Force:  approx.1100kg

• Input voltage：DC12V, or DC24(can be customized)

• Power consumption: : 150mA（electrify then unlock） or 250mA（electrify then lock)

• Feature: Fail secure(NO);Fail safe(NC)

• Suitable For: Wooden Door,Metal Door,PVC Door

• Signal Output: Door status Output, NO/NC/COM

• Face plate Housing: Painted Steel

• Protection performance: With Diode Surge Absorption Device

• Durability test of solenoid valve: Up to 1 million times

• Suitable Temperature: -10~+55°C(14-131F)


• Suitable Humidity: : 0~95%(non-condensing)

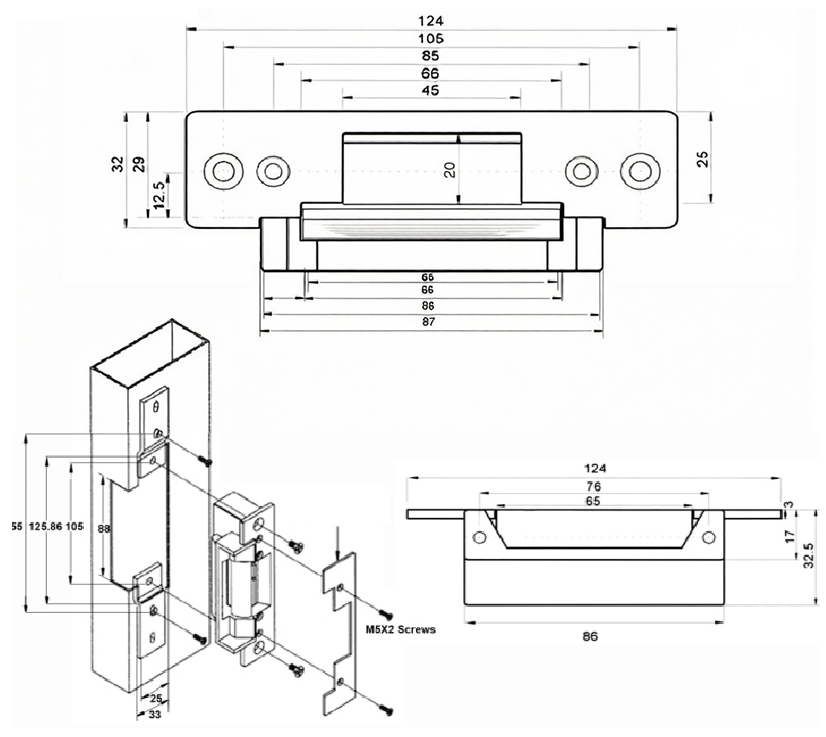

• Lock Size: L124×W32×H33mm

Package Contents:

• Standard Exporting Packing Box
