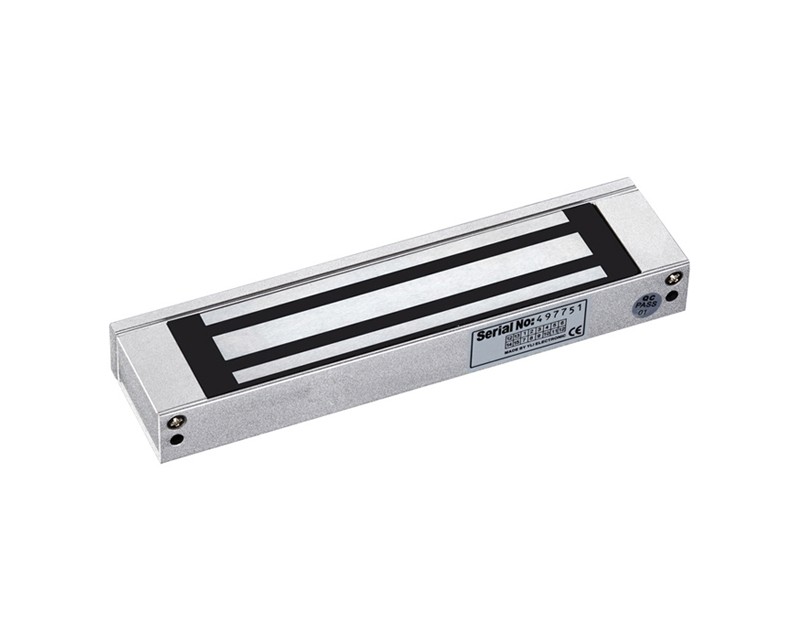

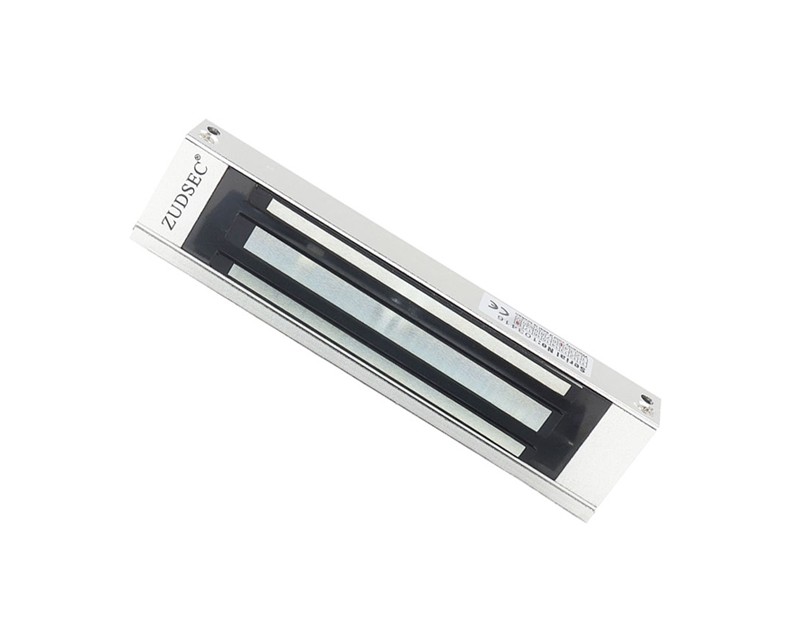

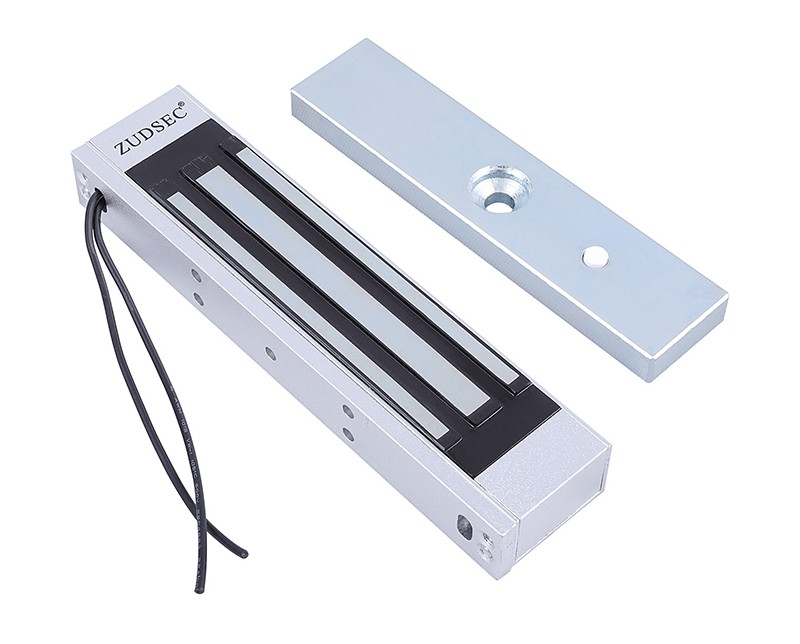

Electromagnetic lock -Single Door: 180Kgs(300Lbs), DC12V, or DC24, Suitable for: Wooden Door, Glass Door, Metal Door, Fire Proof Door.

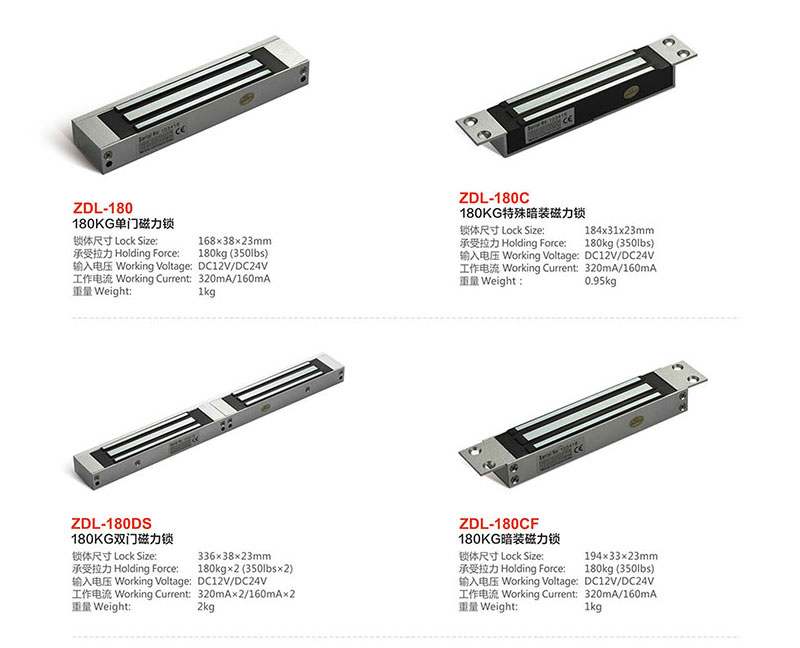

Optional Lock Model No.:  ZDL-180S: 180Kg(300Lbs)

* "S" series Lock Model: 4 wires With door state detection signal output function

   Note: Detect signal of door state: The limit of reed switch and dry contact is 0.5A/30VDC, don't overload(NO/COM)

- Holding Force: 180Kg(300Lbs)
- Fail-safe type: Power-on to lock, Power-off to open

- Can be used with any access control system

- Suitable for: Wooden door , Glass door ,Metal door , Fireproof door
- With door state detection signal output function, for applications that require real-time monitoring of entrance door switch state occasions

• Voltage: 12V, or 24VDC(customizable)

• Power consumption: 12V/320mA; 24V/250mA(customizable)

• Surface mounted

• Signal output: NO output when locking and unlocking the NC output ( for ZDL-180S)

• Finishes for Shell: Anodized aluninum:
  - Finishes for Magnetic: Zinc
  - Finishes for Armature: Zinc


• Surface Temp: ≤+20°C

• Operating Temp: 10~+55°C(14-131F)

• Suitable Humidity:  0~90%

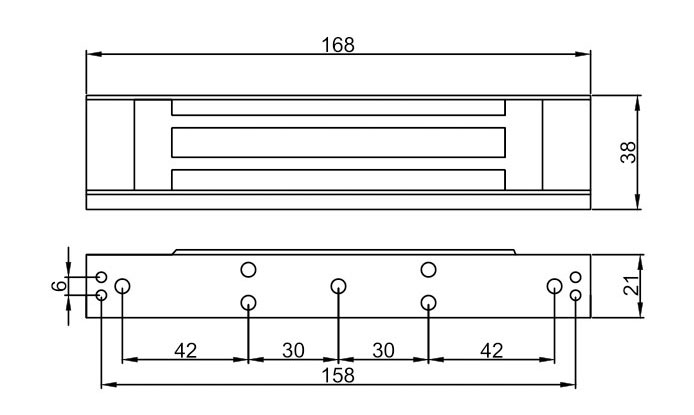

• Product dimension：168×38×23mm(Body); 140×33×11mm(Magnet)

• Packing size: 22.3*8*3cm, Weight: 0.95Kgs

Package Contents:

• Standard Exporting Packing Box
